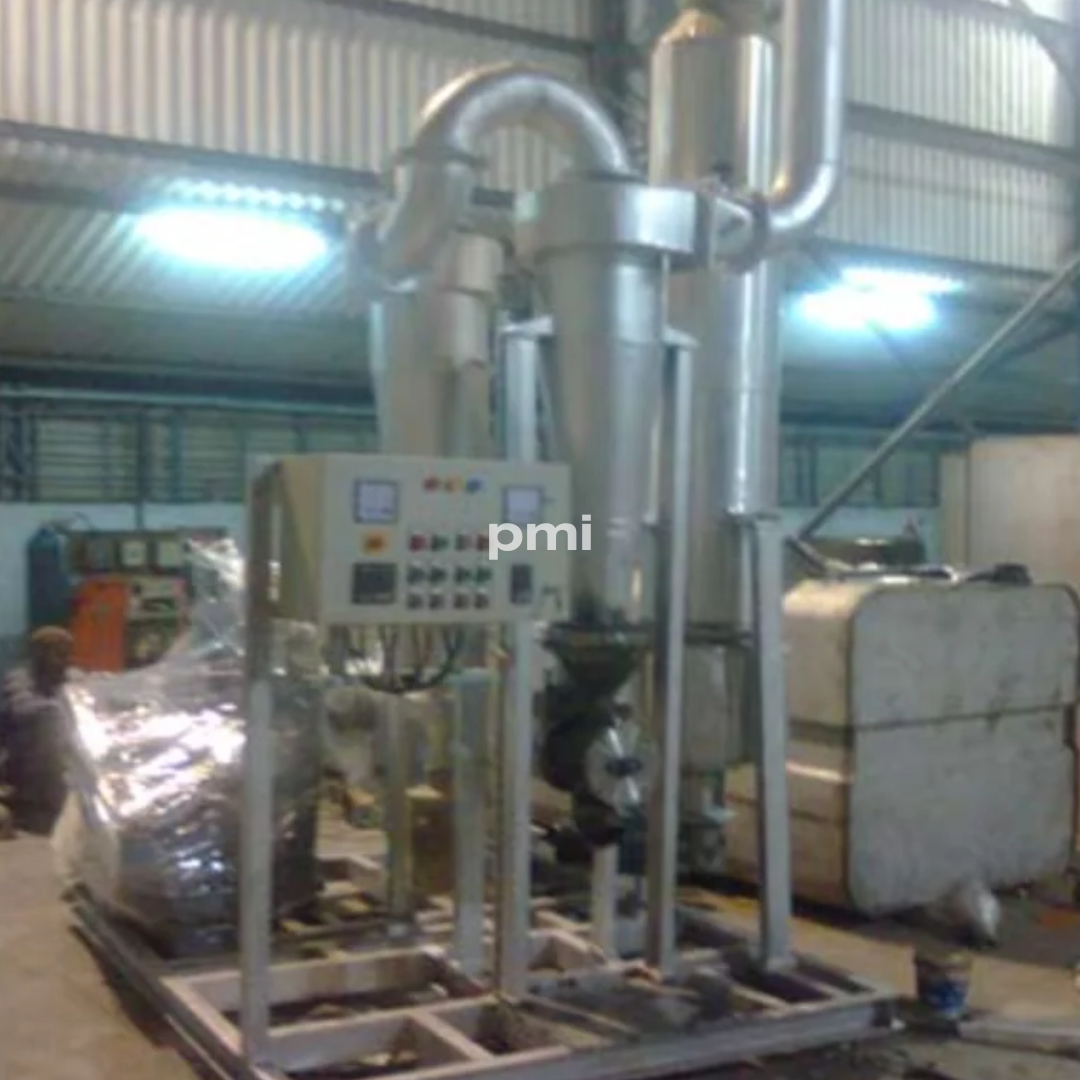

Spin Flash Dryer
Spin Flash Dryer Overview
Efficient Drying for Fine Powders, Pastes & Slurries
The Spin Flash Dryer is a high-performance drying system designed for instant drying of cohesive and non-free-flowing materials like filter cakes, pastes, and slurries. Ideal for industries requiring high throughput and precise moisture control, it offers rapid drying with minimal residence time, preserving product quality and consistency.
Working Principle
The wet material is fed into the drying chamber through a screw feeder or pump system. Inside, a high-speed rotating disperser breaks the material into fine particles. Simultaneously, hot air is introduced at the base of the chamber, creating a swirling airflow that instantly dries the dispersed particles.
The dried powder is carried upward with the hot air stream and separated from the air in a cyclone separator or bag filter. Oversized particles fall back for further drying, ensuring uniform output.
Key Features
High-Speed Rotor for Agglomerate Dispersion
Instant Drying Using Hot Air Stream
Compact Vertical Design
Energy Efficient Operation
Suitable for Heat-Sensitive Products
Screw Feeder or Pump Feeding System
Integrated Dust Collection System
Available with CIP System (Optional)
Applications
Pharmaceuticals (wet cake drying)
Starch, dyes, and pigments
Inorganic and organic chemicals
Ceramics and minerals
Food ingredients and proteins
Agrochemicals and pesticides
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 10 kg/hr to 2000 kg/hr (customized) |
| Inlet Temperature | Up to 300°C (product dependent) |
| Outlet Temperature | 80°C to 120°C |
| Material of Construction | SS304 / SS316 / MS with lining |
| Feeding System | Screw feeder / slurry pump |
| Heating Source | Steam, thermic fluid, gas, or electrical |
| Dust Collector | Cyclone separator / bag filter |
| Control Panel | Manual or PLC-based |
| Cleaning | Manual or optional CIP system |
Benefits
Fast drying with short residence time
Minimal thermal degradation of product
Handles sticky, lumpy, and pasty materials
Consistent particle size distribution
Low operating and maintenance cost
Continuous operation for high productivity
Downloads
Ready to Optimize Your Drying Process?
Upgrade to PM Industries and Process Equipment Pvt. Ltd. Spin Flash Dryer for faster, efficient, and reliable drying of wet cakes, slurries, and pastes.
